Description

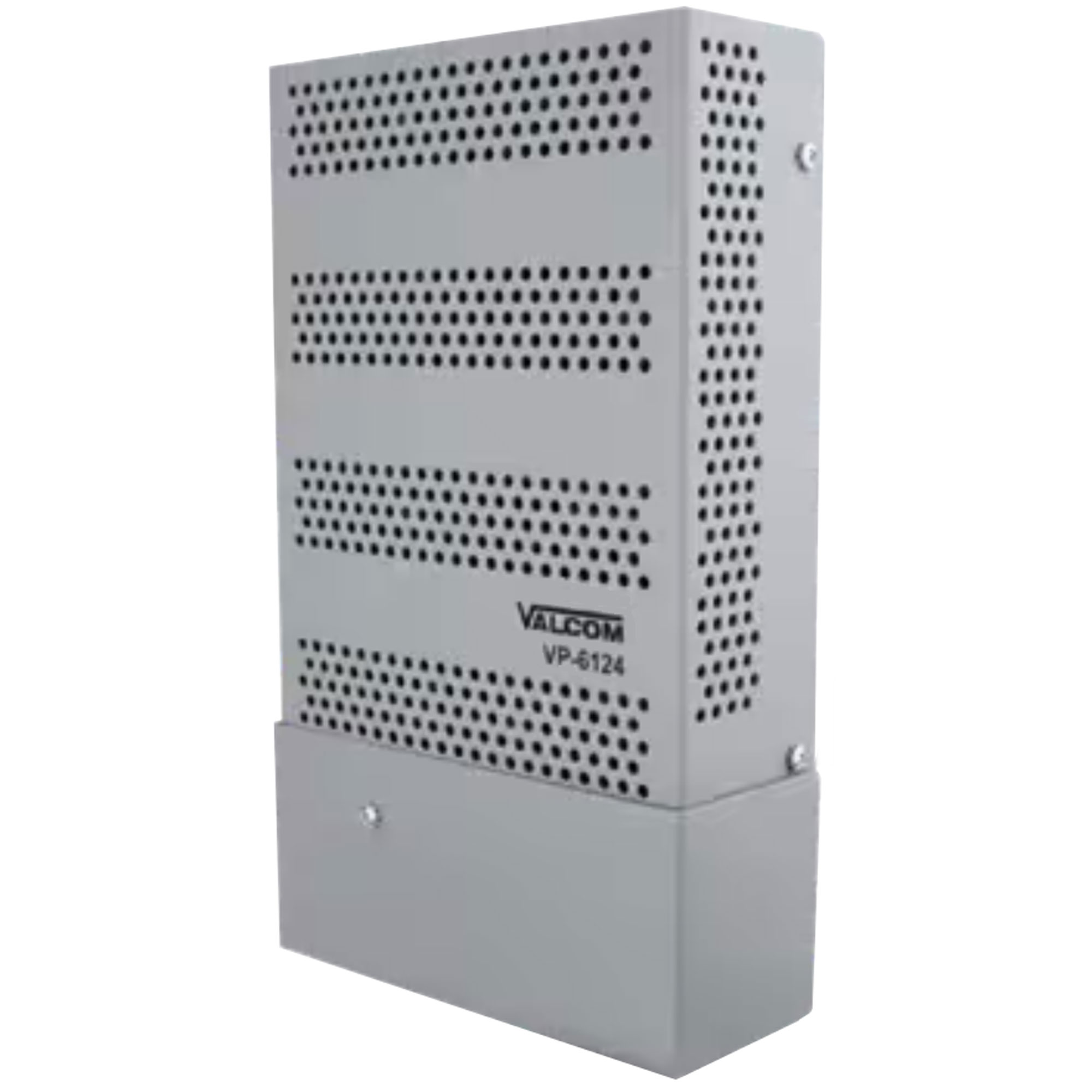

The Valcom VP-6124 Power Supply Switching, 6Amp/24Vdc features:
- The VP-6124 is fully regulated and filtered 24 Vdc, 6 Amp switching power supplies. The VP-6124 is
- Designed to be used with:
- all Valcom page control units and
- Valcom one-way amplified speakers
- any installation that requires a 24 Vdc filtered talk battery
- an optional power supply shelf is available.
- Three outputs at 2 AMPs each
- Regulated and filtered
- Floating output
- Input (fuse protected):
- Voltage: 120 Vac
- Frequency: 47-63 Hz
- Power: 165 Watts
- BTU/Hr: 565
- Protection: 4A/120VACLine Fuse
- Connection: IEC 320 Input + AC Cord
- Output (protected):
- Rated Power: 300-Watts
- Rated Output Load: Voltage: 24 Vdc Regulated + 2%
- Filtered, Floating 10 mV Ripple Maximum
- Current: 6 Amps, Three 2A/Outputs
- Protection: Three 2 A Auto-reset poly switches
- Connections: Wire cage connectors
- UL and cUL listed
- Dimensions: 0.30in H x 5.92in W x 2.50in
- Weight: 9.00 lbs.
- Wall mount plate included
- Refurbished
- One-Year Warranty
